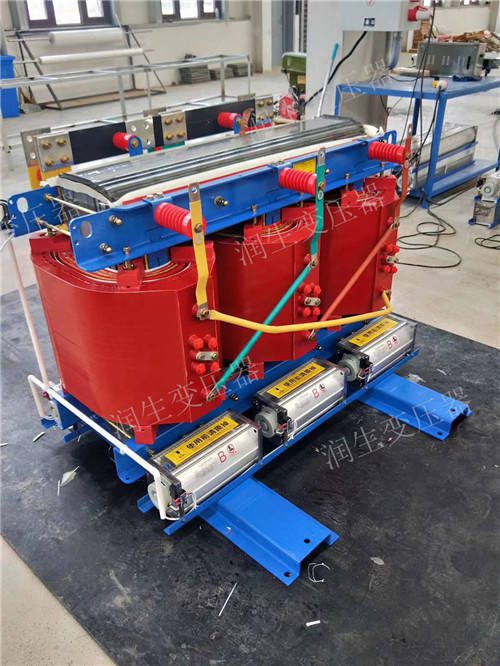

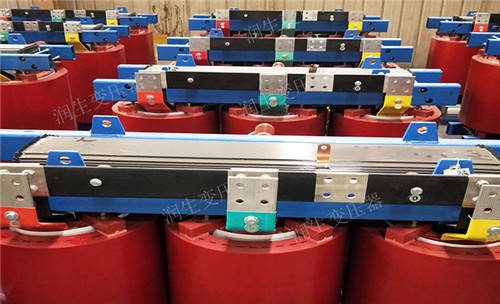

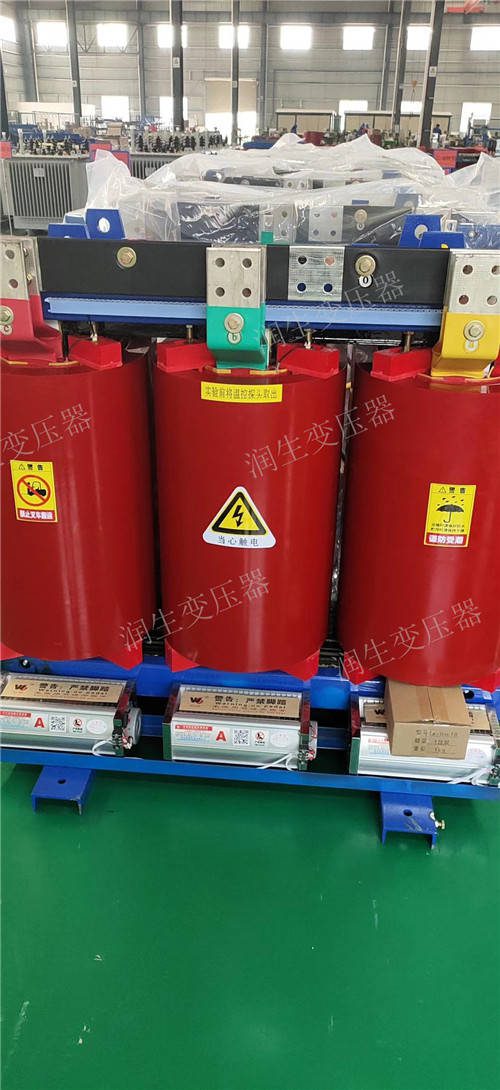

SCBH15-400KVA amorphous alloy dry-type transformer is safe, flame-retardant, fire-retardant, pollution-free, and can be installed directly in the load center. Maintenance-free, easy to install, low overall operating costs. It has good moisture-proof performance, can operate normally at 100% humidity, and can be put into operation without pre-drying after decommissioning. Low loss, low partial discharge, low noise, strong heat dissipation capacity, and can operate at 150% rated load under forced air cooling. It is equipped with a complete temperature protection control system to provide a reliable guarantee for the safe operation of the transformer. High reliability.

SCBH15-400KVA amorphous alloy dry-type transformer features:

1. Energy saving – due to the use of amorphous alloy core production and innovative three-phase three-column manufacturing process, the iron loss is greatly reduced, and the no-load loss is about 25% of the conventional dry change. Amorphous alloy core though in the early stages High, but amorphous alloy transformer due to its efficiency, energy-saving characteristics, in the case of an average load of 60%, can recover additional within 3-5 years, in the transformer’s 30-year life can save considerable electricity expenses.

2. High reliability – the product meets the standards GB1094.11-2007, GB/T22072-2008 and IEC60076-11 standards; The product is H (operating temperature 180°C) heat resistance grade, while its main insulating material is C grade (operating temperature 220 °C), leave a large margin; Able to withstand harsh conditions of storage and transportation; Able to operate normally under harsh conditions (including climate and geographical environment); There are more than general dry-type transformers overload capacity; It has a good ability to resist short circuits; The transformer is maintenance-free under normal use.

3. Good safety – the transformer will not support combustion in use, can be flame retardant, and will not release harmful gases; When the transformer is used, it will not cause harm to the environment and other equipment, especially to people.

4. Good environmental protection – the product will not cause pollution to the environment during manufacturing, transportation, storage and operation; At the end of the service life of the product, the coil can be recycled, and the resources can be reused without causing harm to the environment; In addition, the innovative core structure and The manufacturing process ensures that the noise of the amorphous transformer is lower than the current standard of 4-5dB, and successfully overcomes the problem of high noise of the amorphous transformer.

SCBH15-400KVA amorphous alloy dry-type transformer performance

1. Flame retardant, explosion-proof, pollution-free, maintenance-free, can be dispersed and installed in the load center, reducing investment cost and saving costs.

2. Low loss, good power-saving effect, and economic benefits in operation.

3. The partial discharge amount is less than 10PC, the coil does not absorb moisture, does not absorb dust, has high mechanical strength and good reliability. Cost savings.

4. Anti-short circuit, good resistance to lightning impact.

5. The shell is made of stainless steel, cold plate and aluminum alloy, and the type is divided into air type and heat dissipation type, and the inlet and outlet lines can be up and down, down and up, and down.

6. The transformer can be equipped with temperature control and temperature display system according to user needs, and can be used in conjunction with the temperature control system.

SCBH15-400KVA amorphous alloy dry-type transformer is a new generation of energy-saving products launched by our company to create an energy-saving society. SCBH15-400KVA amorphous alloy dry-type transformer adopts a new generation of core material amorphous alloy, the most significant feature of amorphous alloy is low unit loss, under the same magnetic density, the unit loss of amorphous alloy core is only 25% of silicon steel sheet, and the energy-saving effect is very significant. Amorphous alloy resin insulated dry-type distribution transformer inherits all the advantages of epoxy resin cast dry-type transformer, and is a key recommended product for urban power grid transformation.
