SCB14-3150KVA dry-type transformer: an in-depth analysis of its structure and performance advantages

As a key component of power transmission and distribution system, SCB14-3150KVA dry-type transformer has been widely used in the power industry due to its efficient, safe and reliable performance characteristics. With its unique structure and advanced technology, this transformer provides a strong guarantee for the stable operation of the power system.

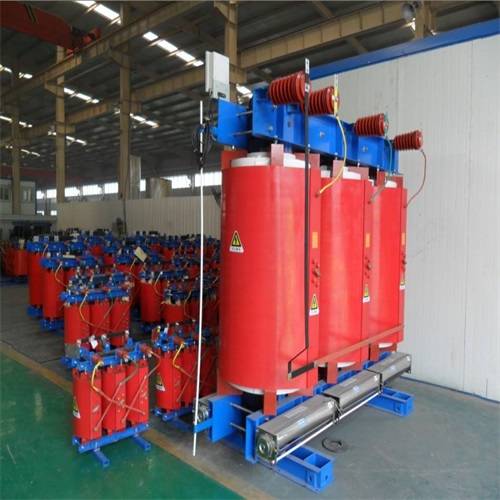

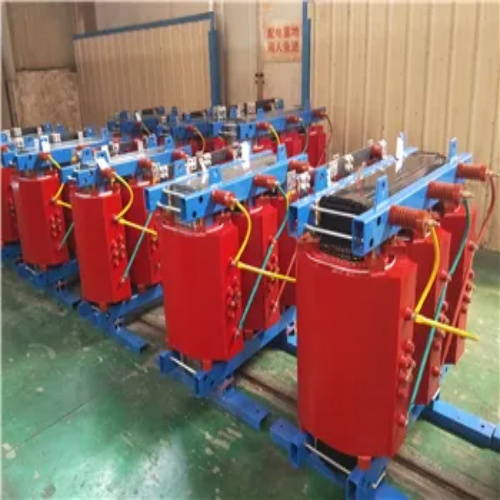

First of all, from a structural point of view, the SCB14-3150KVA dry-type transformer adopts an advanced dry-type design, which abandons the oil leakage and fire risk of traditional oil-immersed transformers. It is mainly composed of an iron core composed of silicon steel sheets and an epoxy resin cast coil, and the iron core is made of imported high-permeability, low-loss, cold-rolled high-quality silicon steel sheets, which reduces no-load loss and saves energy significantly. An insulating cylinder is placed between the high and low voltage coils to increase the electrical insulation performance, and the coils are supported and constrained by cushion blocks to ensure the stability and reliability of the transformer structure.

In terms of performance, the SCB14-3150KVA dry-type transformer shows excellent performance advantages. Its efficient conversion efficiency is due to its high-quality materials and unique design. The optimized structure of the core and coil reduces energy loss and improves the energy efficiency of the transformer. In addition, the transformer also adopts advanced manufacturing technology and technology, and has the characteristics of stable quality, long life and simple maintenance. The housing is made of high-quality aluminum alloy, which is lightweight and compact, making it easy to install and handle.

In addition to high efficiency, the SCB14-3150KVA dry-type transformer also focuses on safety and reliability. It adopts a fully enclosed, oil-free, moisture-proof, dust-proof and corrosion-proof design, which can operate safely for a long time in harsh environments. At the same time, it is also equipped with a complete temperature measurement and protection system, which can automatically identify and inspect the working temperature of the three-phase winding, and automatically run and terminate the centrifugal fan. When the transformer fails or abnormally occurs, the system can alarm in time and take corresponding protective measures to ensure the safe and stable operation of the power system.

In addition, the SCB14-3150KVA dry-type transformer has a number of practical functions. Its coil parameters are accurately designed, including the number of coil turns, cable diameter, cable type, winding arrangement and safety insulation design, etc., to ensure the stable operation and efficient performance of the transformer. At the same time, the transformer also adopts flame-retardant, moisture-proof, dust-proof and other designs, which can penetrate deep into the load center to meet the needs of various complex environments.

In terms of application fields, the SCB14-3150KVA dry-type transformer has a very wide range of applications. It can be widely used in factories and mining enterprises, medical institutions, airports, shopping malls, hotels, high-rise buildings and other places, providing stable and reliable power support for various power distribution systems and substation equipment of industrial control power supply. Its efficient, safe and reliable performance characteristics make it an important equipment in the power system and make an important contribution to the development of the power industry.

In general, SCB14-3150KVA dry-type transformer has been widely used in the power industry due to its high efficiency, safety, reliability and environmental protection performance characteristics. With the continuous growth of power demand and continuous progress of technology, we have reason to believe that SCB14-3150KVA dry-type transformer will continue to play an important role and make greater contributions to the safe, stable operation and sustainable development of the power system. At the same time, we also look forward to more innovative technologies and designs being applied to dry-type transformers in the future to further improve their performance and efficiency, and inject new vitality into the development of the power industry.”
