SCB14-2500KVA dry-type transformer: in-depth analysis of its structure and performance

SCB14-2500KVA dry-type transformer is an electrical equipment that is efficient, safe and widely used in various power occasions. It adopts an advanced dry-type design, which abandons the risk of oil leakage and fire of traditional oil-immersed transformers, and provides a strong guarantee for the stable operation of the power system. Below, we will conduct an in-depth analysis of the structure, performance and application of SCB14-2500KVA dry-type transformer.

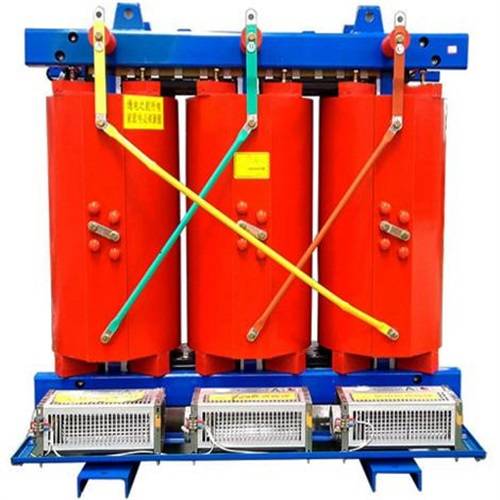

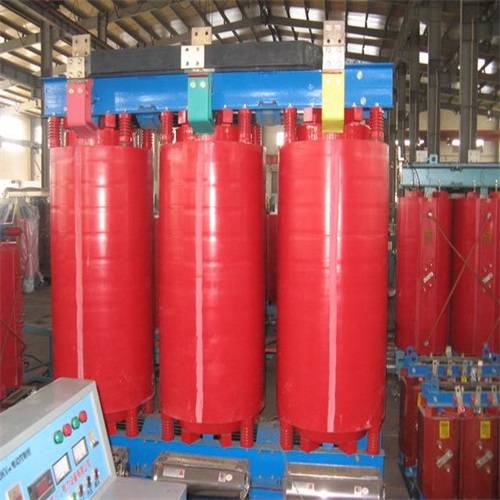

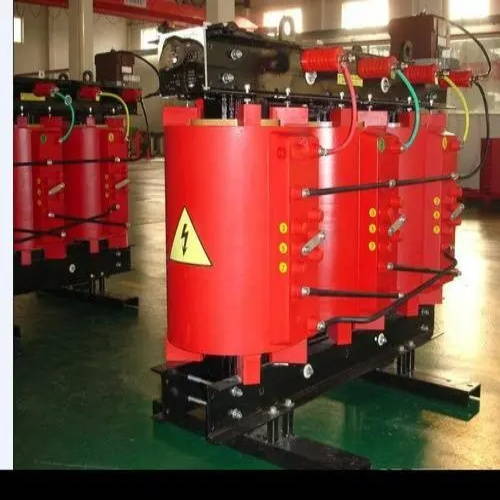

First of all, from a structural point of view, the SCB14-2500KVA dry-type transformer is mainly composed of an iron core composed of silicon steel sheets and an epoxy resin cast coil. As the magnetic circuit part of the transformer, the iron core is made of high-quality silicon steel sheets, which effectively reduces the magnetoresistive and eddy current losses. The coil is made of epoxy resin casting process, which makes the winding have excellent insulation properties and mechanical strength. In addition, an insulating cylinder is placed between the high and low voltage coils to increase the electrical insulation performance, and the coils are supported and constrained by cushion blocks to ensure the stability and reliability of the transformer structure.

In terms of performance, the SCB14-2500KVA dry-type transformer shows its superior side. It adopts the domestic advanced technology, so that the transformer has the characteristics of high mechanical strength, strong anti-short circuit ability, small partial discharge, and good thermal stability. At the same time, the advantages of the dry-type design are also fully reflected, and there is no oil leakage and fire risk, which greatly improves the safety of the transformer. In addition, the transformer also has good thermal conductivity and can operate in excess of volume for a short time under overload, which provides a strong guarantee for the stable operation of the power system.

It is worth mentioning that the SCB14-2500KVA dry-type transformer is also equipped with a complete temperature measurement and protection system. Through the intelligent data signal temperature control system, the working temperature of the three-phase winding can be automatically identified and inspected, and the centrifugal fan can be automatically operated and terminated. At the same time, the system also has the function design of reporting and power outage to ensure that the transformer can be alarmed in time and take corresponding protective measures when the transformer is faulty or abnormal.

In terms of application fields, SCB14-2500KVA dry-type transformer has a wide range of applications. It can be used in the electronic industry, factories and mining enterprises, as well as the power supply of general circuits in machine tools and mechanical equipment, as well as the power supply of safety lighting and indicator lights. In addition, due to its high safety and convenient maintenance, SCB14-2500KVA dry-type transformer is also often used in equipment maintenance, lightning protection and filtration. At the same time, with the continuous growth of urban electricity consumption, SCB14-2500KVA dry-type transformer also plays an increasingly important role in the construction of urban power grid.

In addition, from the perspective of energy conservation and environmental protection, the SCB14-2500KVA dry-type transformer also shows its unique advantages. It is designed to be energy-efficient, allowing the transformer to operate with lower energy consumption and lower environmental impact. At the same time, the dry-type design transformer eliminates the need for cooling oil, avoiding the risk of oil leakage and environmental contamination.

In general, SCB14-2500KVA dry-type transformer has become an important equipment in the power system due to its high efficiency, safety, stability and environmental protection. In the future, with the continuous growth of power demand and the continuous progress of technology, we have reason to believe that SCB14-2500KVA dry-type transformer will continue to play an important role and make greater contributions to the safe, stable operation and sustainable development of the power system. At the same time, we also need to strengthen the maintenance and maintenance of the transformer to ensure that it can maintain good performance in the long-term operation process, and provide a strong guarantee for the development of the power industry.
