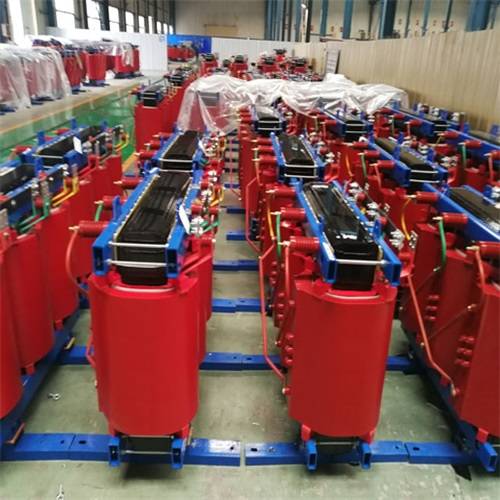

SCB14-100KVA dry-type transformer is a common power equipment, which has the characteristics of safety and reliability, energy saving and environmental protection, and convenient maintenance. The following is a detailed introduction and advantage analysis of SCB14-100KVA dry-type transformer:

1. Product introduction

SCB14-100KVA dry-type transformer is a kind of transformer with closed structure, its core and windings are completely enclosed, so it has good moisture-proof and dust-proof performance. Compared with traditional oil-immersed transformers, dry-type transformers are safer and more reliable, and will not cause dangerous situations such as fire or explosion. At the same time, dry-type transformers also have the advantages of energy saving, environmental protection, convenient maintenance, etc., and are widely used in various power systems and electrical equipment.

Second, technical parameters

Rated capacity: 100kVA

Rated voltage: 10kV on the high-voltage side and 400V on the low-voltage side

Rated current: 5.77A on the high-voltage side and 231.8A on the low-voltage side

Connection group: Dyn11 and Yyn0

Cooling method: natural air cooling

Insulation Grade: Class F insulation

Degree of protection: IP44

3. Advantage analysis

Safe and reliable: SCB14-100KVA dry-type transformer adopts a fully enclosed structure, which has good moisture-proof and dust-proof performance, and can adapt to the operation of various harsh environments. At the same time, it adopts high-quality materials and advanced production technology, has high electrical performance and mechanical strength, and can ensure the safe and reliable operation of the transformer. During operation, the occurrence of dangerous situations such as fire or explosion is also reduced due to the absence of the use of flammable and explosive materials such as oil.

Energy saving and environmental protection: SCB14-100KVA dry-type transformer adopts new core material and winding structure, which has high energy efficiency and low energy consumption. Compared with traditional oil-immersed transformers, its energy efficiency is improved by more than 5%, saving enterprises a lot of energy costs. At the same time, because it does not use flammable and explosive materials such as oil, it also reduces the risk of environmental pollution and fire, and is more environmentally friendly and safe.

Easy maintenance: SCB14-100KVA dry-type transformer adopts natural air cooling for heat dissipation, and does not need to change oil or clean the oil tank regularly like oil-immersed transformers. As a result, it requires less maintenance and lower maintenance costs. In terms of maintenance, due to its closed structure, it also reduces the impact of dust and moisture on the transformer, prolonging the service life of the transformer. At the same time, because there is no use of flammable and explosive materials such as oil, it also reduces the potential safety hazards in the maintenance process.

Long life: SCB14-100KVA dry-type transformer adopts materials and production processes with strong weather resistance and long life, which can ensure the long-term stable operation of the transformer. Compared with the traditional oil-immersed transformer, its service life has been significantly improved, which can save a lot of equipment replacement costs for enterprises. At the same time, due to its closed structure, it also reduces the impact of the external environment on the transformer, further extending the service life of the transformer.

Strong applicability: SCB14-100KVA dry-type transformer is suitable for different use environments and system requirements, and can operate normally in various climatic conditions and environments. It has strong environmental adaptability and stability, and can meet the needs of different users. At the same time, due to its advantages of energy saving, environmental protection, safety and reliability, it is also widely used in residential, commercial and industrial fields.

Fourth, summary

As a high-efficiency, energy-saving, safe and reliable power equipment, SCB14-100KVA dry-type transformer has a wide range of application prospects and market potential. Its advantages of safety and reliability, energy saving and environmental protection, easy maintenance, long life and strong applicability make it an ideal choice for power users. In the future, with the continuous improvement of energy shortage and environmental protection requirements, SCB14-100KVA dry-type transformer will be more and more widely used in power systems.
