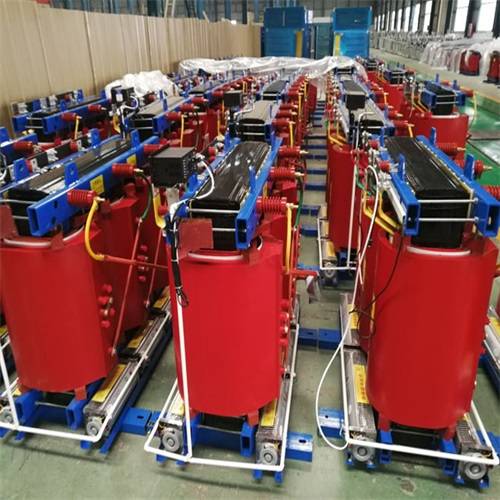

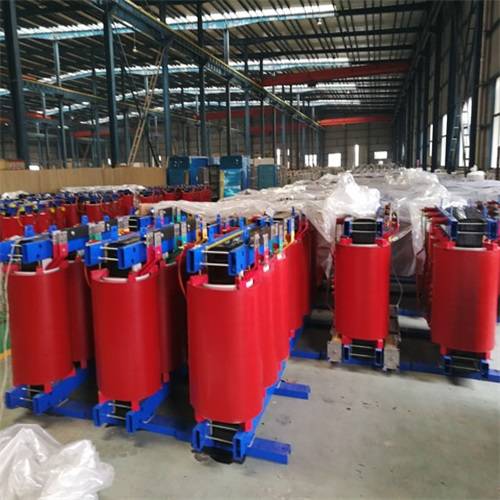

Product Overview

The technical indicators of the SCB11-3150KVA dry-type transformer produced by our factory meet all kinds of specifications, and the operation is stable and stable after being proved by the customer’s ownership, so as to achieve the leading level in the field. SCB11-3150KVA dry-type transformer selects overseas cutting-edge production technology, design drawings and technical data are complete, appropriate and clear, advanced manufacturing equipment, stable processing technology, perfect measurement methods, and bring a solid guarantee for the development of high-quality goods for the enterprise.

SCB11-3150KVA干式变压器特性

1. The high-voltage winding is made of enameled copper wire, and the low-voltage winding is inducted by copper berth coil. The high-pressure winding is filled with glass fiber felt, and poured with some epoxy resin glue imported with filler in a vacuum state, which cures to produce a firm overall, high impact toughness, no partial discharge, and good stability.

2. Group combustion, explosion-proof type, non-damaging environment, energy-saving type, can be installed in the load center.

3. The solenoid coil is not subject to moisture, and the iron core and clamp can be operated from 1oo% air humidity and other extreme environments with special technical treatment. Intermittent operation does not have to be solved by dampness.

4. High anti-short-circuit fault, high lightning impact technology and large load capacity.

5. The epoxy resin cable sheath on both sides of the electromagnetic coil is thin and has good thermal conductivity. The heat dissipation method is generally gas cooling (AN). Substations of any waterproof class can be equipped with an air-cooling system (AF).

6. Low consumption, obvious power-saving effect, economic development operation, and durability.

7. Small size, light weight, small floor space, simple installation.

8. As a new generation of oil-immersed transformers, SC (B) oil-immersed transformers are suitable for power supply systems in the following places: multi-storey buildings, commercial plazas, dramatic defense, hospital outpatient clinics, factories and mining enterprises, water drilling platforms, ships, subway stations, subway stations, airports, power stations, residential areas and skyscrapers

SCB11-3150KVA dry-type transformer standard and standard

1、Norms:gb1094、gb6450-86、gb/t10228-1997、合乎din42523、iec726

2、Volume range: 3o-16000kva

3、Rated voltage: 10kv, 35kv

4. Voltage transformation method: no excitation voltage regulation or on-load voltage regulation

5. Tap range: ±5%, ±2×2.5%, ±4×2.5%.

6. Working frequency: 50Hz or 60Hz

7. Number of phases: three-phase or single-phase electricity

8. Model of coupling group: yyn0, dyn11 or others.

9. Short-circuit impedance: specification characteristic impedance

1o. When the altitude is less than 1000m and the working temperature is less than 40 degrees, and the above scope of application is exceeded, the corresponding budget quota adjustment should be carried out according to the standard

11. Continuous high temperature rise: 100K

12. Heat dissipation mode: over-temperature protection (AN) or air-cooled (AF)

13、Waterproof grade：ip00,ip20,ip23

14. Flame retardant grade: F grade

15. Insulation level:

(1) The power frequency withstand voltage of 10kV products is 35kV, and the working voltage of lightning impulse is 75kV

(2) The power frequency withstand voltage of 20kV products is 50kV, and the working voltage of lightning impulse is 125kv

(3) 35kV class products, power frequency withstand voltage 70kV, lightning strike; The working voltage of the hit is 170kv
