Product Introduction

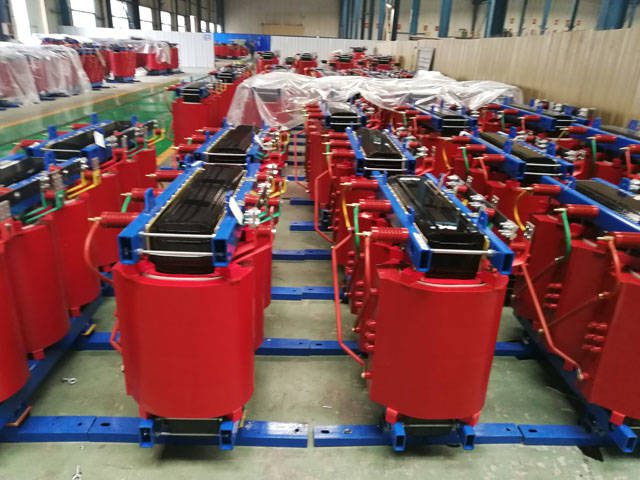

SCB10 transformer is made of high-quality materials, scientific structure, and advanced production and testing equipment according to strict technology. The product has the characteristics of high reliability and long life. Depending on the use environment, the enclosure with different protection levels can be configured or not. SCB10 transformer can be used as a replacement product for oil-immersed transformers, suitable for high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, ships and other important or special environmental places.

Benefits:

◆Compared with SCB10 type, this series of transformers has lower no-load loss, no-load current and noise.

◆ Safe, fireproof, pollution-free, can run directly in the load center.

◆ High mechanical strength, strong anti-short circuit ability, small partial discharge, good thermal stability, high reliability and long service life.

◆ Good heat dissipation performance, strong overload capacity, and increased capacity operation when forced air cooling.

◆ Good moisture-proof performance, adapt to high humidity and other harsh environment operation.

◆ It can be equipped with a perfect temperature detection and protection system. The intelligent signal temperature control system can automatically detect and display the working temperature of the three-phase winding on the same screen, automatically start and stop the fan, and have alarm and trip function settings.

◆ Small size, light weight, less floor space, low installation cost.

SCB10 transformer features:

1. Safe, flame retardant and fireproof, low noise, pollution-free, energy-saving and environmentally friendly products that can be directly installed in the load center, and reliability products with climate C2, environmental E2 and fire protection F1 grades.

2. High-voltage and low-voltage full-foil structure coils, strong resistance to lightning impact and short circuit, and high operation reliability.

3. High and low pressure full epoxy resin vacuum casting structure coils, small partial discharge, air ducts can be installed, moisture-proof and heat dissipation performance are good, can be put into normal operation under 100% relative humidity and -25 °C, and the capacity is increased by 25~40% when air cooled.

4. Easy installation and maintenance, low operating loss and low comprehensive operating cost.

5. Equipped with anti-electric and magnetic field interference temperature display and control system, computer interface can be attached to realize remote control and monitoring, and provide guarantee for the safe operation of the transformer.

6. It can be equipped with a protective shell and a connecting busbar, suitable for indoor or outdoor use; The indoor assembled structural shell can not be limited by the door frame of the installation site, and the connecting busbar can be directly spliced with the switch cabinet busbar, which has strong applicability.

The SCB10 transformer is safe, flame retardant, fireproof, pollution-free, and can be installed directly in the load center. Maintenance-free and easy to install. It has good moisture-proof performance and can be put into operation without pre-drying after being out of operation. SCB10 transformer has low loss, low partial discharge, low noise, and can be 120% under forced air cooling conditions. Rated load operation. It has a complete temperature protection control system to provide reliable guarantee for the safe operation of the transformer. The reliability index of SCB10 transformer has reached the domestic advanced level.
