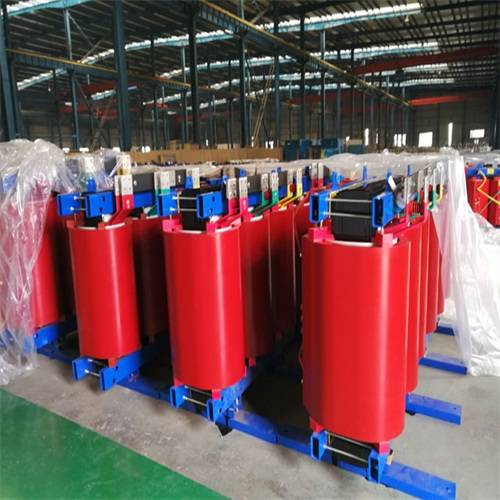

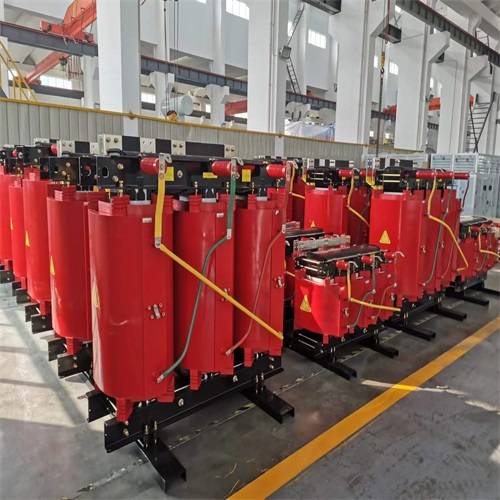

SCB10-2500KVA dry-type transformer is an oil-immersed transformer with very high electrical strength, fracture toughness, high temperature and compressive strength, which is a high-quality product for the transformation of social power grids, especially suitable for high-rise buildings, airports, power plants, commercial plazas and other important ways of fire safety, explosion-proof and waterproof.

SCB10-2500KVA dry-type transformer application range

1. The average altitude shall not exceed 1000m.

2. Operating temperature

*High temperature environment: +40°C

*高日平均气温：+30℃

*高年平均气温：+20℃

*Low ambient temperature: -30°C (suitable for outdoor transformers)

*Low ambient temperature: -5°C (suitable for in-room transformer)

3. The waveform of the supply current

The waveform of the supply current is infinitely close to the sinusoidal waveform.

4. Symmetry of multi-component power supply current

The power supply currents connected to the multi-component Satons transformer should be stacked in close proximity.

SCB10-2500KVA dry-type transformer features:

1. Good flame retardancy. As a raw material for transformer insulation, epoxy resin glue combined with glass fiber has the characteristics of flame retardant and easy to extinguish, and will not cause electric loneliness, flame retardant and explosion-proof due to short-circuit faults, and can deeply load the power supply system of the center.

2. Assembling and running economic development. Epoxy transformers can be installed close to the load, reducing installation costs and energy consumption in distribution lines.

3. Durable, epoxy resin transformer is oil-free, no maintenance, will not cause secondary pollution to the surrounding environment due to oil seepage, and also saves a lot of daily maintenance work and costs.

4. Good waterproofing. It can operate normally under 99% conditions and does not require pre-drying for repair runs.

5. Good insulation, low partial discharge. It is resistant to short-circuit faults and has strong resistance to lightning impact.

6. Low consumption, high work efficiency and low application cost. The long-term operation has obvious economic benefits.

7. Low noise and strong heat dissipation capacity. Forced air-cooled specification with 150% load capacity.

8. It has the characteristics of anti-theft system. The copper coil is sealed by epoxy resin glue and glass fiber, which is difficult to disassemble and sell the copper core wire, so it can play a role in preventing the transformer from being stolen.

9. The temperature display control configuration can be set to provide scientific guarantee for the safe operation of the transformer.

10. The composition structure includes: high-voltage terminals, clamps, high-voltage rotating shafts, high-voltage taps, high-voltage connecting pieces, low-voltage electromagnetic coils, high-voltage ignition wires, air-conditioning pipes, cushion blocks, bases, and centrifugal fans.
