S22-4000KVA transformer has a series of advantages such as high efficiency, low consumption and low noise, which is suitable for power and lighting power consumption in rural power grids and remote mountainous areas, and is an energy-saving power supply mode suitable for urban power grid transformation and high-voltage users of each family. The S22-4000KVA transformer can be mounted directly on a platform or suspended on a pole. It has a very significant power-saving and energy-saving effect.

S22-4000KVA变压器特性

 Using high-quality silicon steel sheet, low no-load loss, in line with the second-level energy efficiency specification, low cost of use.

 Wide range of applications, mainly suitable for operating conditions.

 Small installation size, suitable for the upgrading of power grid distribution, reduce the customer’s secondary investment and transformation costs.

 Low noise, meet the specification standards.

 The selection of new materials, new technology, characteristics to reach the domestic advanced level.

 Long operating life.

S22-4000KVA变压器优点表现:

1. Reduce full load loss.

The five-grade silicon steel sheet joint with excellent performance is selected to improve the core structure and process and reduce the process index. Do not stack the yoke silicon steel sheet, do not use paint, and the cutting burr should be controlled below 0.02mm.

2. Reduce load loss.

Conductivity is improved by using a conductor pulled by an oxygen-free copper rod that is more conductive than electrolytic copper. Appropriately adjust the current intensity, improve the insulation structure, select semi-oil channels, prefabricated insulating materials, a full set of winding resistance, self-adhesive wires, and self-adhesive paper, reduce the insulation volume, improve the winding filling coefficient, reduce the winding specifications and reduce load loss

3. Reduce the loss of other components.

Improve the key structure: improve the structure, control the magnetic flux leakage of the windings during the design process, and adjust the ampere turn balance to reduce the impurity consumption of structural parts such as fuel tanks. Wave type fuel tank and pedestal radiator are selected to improve heat exhaust efficiency.

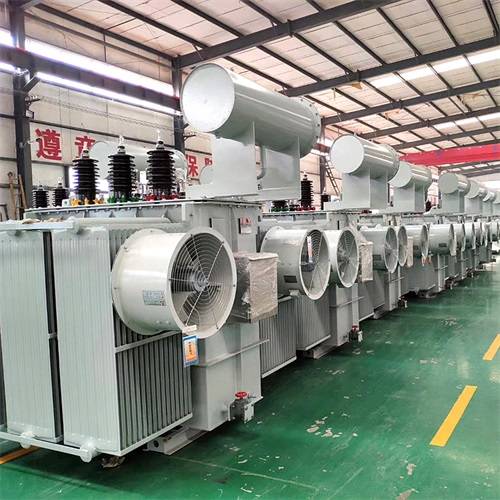

The S22-4000KVA transformer should use oil as the key insulation method of the transformer, and rely on oil as the cooling medium, such as oil immersion self-cooling, oil immersion air cooling, oil immersion water cooling and forced oil circulation. The main components of S22-4000KVA transformer are core, winding, oil tank, oil pillow, respirator, explosion-proof pipe (pressure release valve), radiator, insulating pipe, tap changer, gas relay, temperature gauge, oil purifier, etc.
