S22-3150KVA transformer has a series of advantages such as low consumption and low noise, which is suitable for power and lighting power consumption in rural power grids and remote mountainous areas, and is an energy-saving power supply mode suitable for urban power grid transformation and high-voltage users of each family. The S22-3150KVA transformer can be mounted directly on a platform or suspended from a utility pole. It has a very significant power-saving and energy-saving effect.

S22-3150KVA Transformer Advantages:

1. Reduce full load loss.

The five-grade silicon steel sheet joint with excellent performance is selected to improve the core structure and process and reduce the process index. Do not stack the yoke silicon steel sheet, do not use paint, and the cutting burr should be controlled below 0.02mm.

2. Reduce load loss.

Conductivity is improved by using a conductor pulled by an oxygen-free copper rod that is more conductive than electrolytic copper. Appropriately adjust the current intensity, improve the insulation structure, select semi-oil channels, prefabricated insulating materials, a full set of winding resistance, self-adhesive wires, and self-adhesive paper, reduce the insulation volume, improve the winding filling coefficient, reduce the winding specifications and reduce load loss

3. Reduce the loss of other components.

Improve the key structure: improve the structure, control the magnetic flux leakage of the windings during the design process, and adjust the ampere turn balance to reduce the impurity consumption of structural parts such as fuel tanks. Wave type fuel tank and pedestal radiator are selected to improve heat exhaust efficiency.

S22-3150KVA变压器特性:

1. Reduce no-load loss.

The five-level joints of silicon steel sheets with excellent performance are selected to improve the core structure and process and reduce the process index. The iron yoke is not stacked, the silicon steel sheet is not painted, and the cutting burr is kept below 0.02mm.

2. Reduce load loss.

Choose an oxygen-free copper rod with stronger conductivity than electrolytic copper to pull the wire to improve the conductivity. Appropriately adjust the current intensity, improve the insulation structure, select semi-oil channels, prefabricated insulators, overall wrapping clothes, self-adhesive wires, self-adhesive paper, reduce the insulation volume, improve the winding filling coefficient, and reduce the winding specifications to reduce load loss.

3. Reduce the consumption of other components.

Improve the core structure: Improve the structure, control the leakage flux of the windings in the design, and adjust the ampere-turn balance to reduce the spurious consumption of structural parts such as fuel tanks. Use corrugated fuel tank and sheet radiator to improve heat exhaust efficiency.

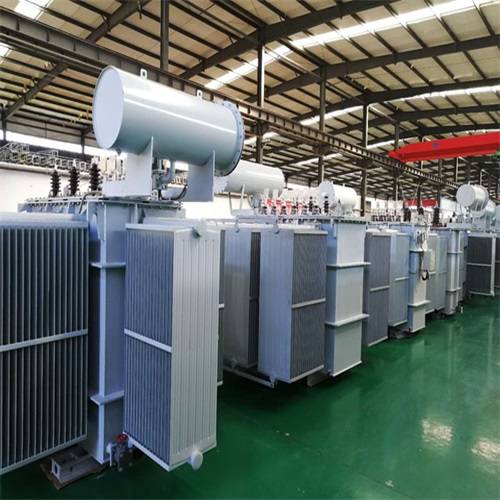

The S22-3150KVA transformer should use oil as the key insulation method of the transformer, and rely on oil as the cooling medium, such as oil-immersed self-cooling, oil-immersed air cooling, oil-immersed water cooling and forced oil circulation. The main components of the transformer include iron core, winding resistance, oil tank, oil pillow, respirator, explosion-proof pipe (pressure release valve), radiator, insulating pipe, tap changer, gas relay, temperature gauge, oil purifier, etc.
