S20-20000KVA oil-immersed transformer: in-depth analysis of its structure and characteristics

Among the key components of the power system, the S20-20000KVA oil-immersed transformer is undoubtedly an important element that cannot be ignored. As a device that converts high-voltage electrical energy into low-voltage electrical energy or converts low-voltage electrical energy into high-voltage electrical energy, it plays a role as a bridge between the upper and lower levels in the process of power transmission, distribution and use. Its stable performance and excellent efficiency provide a strong guarantee for the safe operation of the power system.

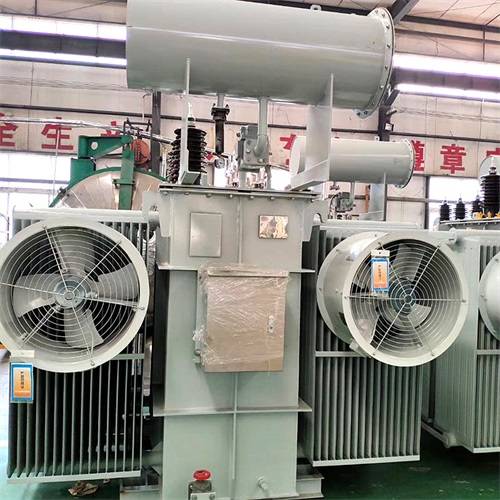

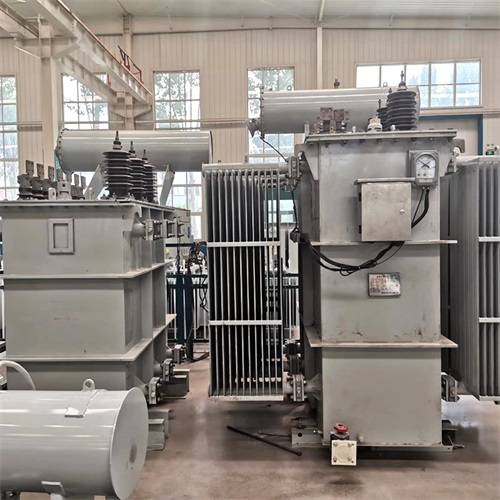

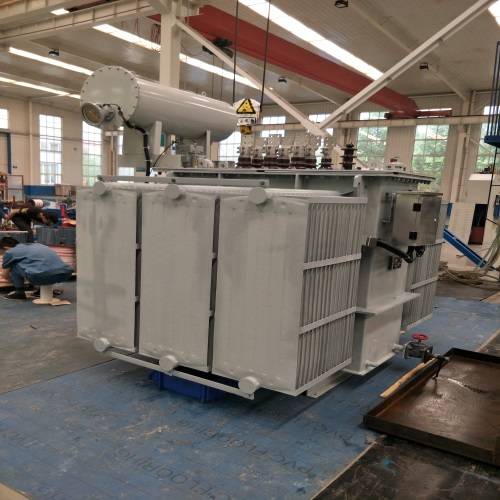

First of all, let’s have an in-depth understanding of the structure of the S20-20000KVA oil-immersed transformer. Its main part is composed of the body, the fuel tank, the cooling device, the protection device and the outlet device. Among them, the body is the core part of the whole transformer, which contains two major components: the core and the winding. The iron core is the main part of the transformer’s magnetic circuit, which is made of silicon steel sheets, and the windings are responsible for the conversion of voltage and current. The oil tank, cooling device and protection device ensure the stable operation and safe use of the transformer.

One of the major features of the S20-20000KVA oil-immersed transformer is its high efficiency. Its efficient conversion efficiency is due to its unique design and high-quality manufacturing materials. For example, the use of oxygen-free copper rods with high conductivity as winding conductors reduces energy loss and improves the efficiency of transformers. At the same time, the energy efficiency of the transformer is further improved by optimizing the core structure and process to reduce reluctance and eddy current losses.

In addition to high efficiency, the S20-20000KVA oil-immersed transformer also has excellent safety and reliability. It uses flame-retardant materials to reduce the risk of fire, and its unique sealing design and cooling system also effectively prevent the ingress of moisture and dust, ensuring the long-term stable operation of the transformer. In addition, its strong overload capacity and short-circuit tolerance also enable the transformer to respond quickly in the face of emergencies and protect the safety of the power system.

S20-20000KVA oil-immersed transformer has a wide range of applications, whether it is a large power plant, substation, industrial enterprises and urban power grid, it can be seen. Especially in places that require large-capacity and high-efficiency power conversion, the S20-20000KVA oil-immersed transformer plays an irreplaceable role. Its efficient conversion efficiency ensures the full utilization of power resources and provides a strong power guarantee for China’s economic development.

However, despite the many advantages of the S20-20000KVA oil-immersed transformer, we still need to pay attention to its maintenance and upkeep during use. Regular maintenance and inspection can find and solve potential problems in time to ensure the normal operation of the transformer. At the same time, we also need to pay attention to its operating environment and avoid using it in a humid and dusty environment to prolong its service life.

In general, the S20-20000KVA oil-immersed transformer has become an important equipment in the power system due to its high efficiency, stability and safety performance. In the future, with the continuous growth of power demand and the continuous progress of technology, we have reason to believe that the S20-20000KVA oil-immersed transformer will continue to play an important role and contribute more to the development of China’s electric power industry.
