S20-8000KVA oil-immersed transformer is a high-performance, high-efficiency power equipment, with a wide range of application prospects and market potential. The following is a detailed introduction and advantage analysis of the S20-8000KVA oil-immersed transformer:

1. Product introduction

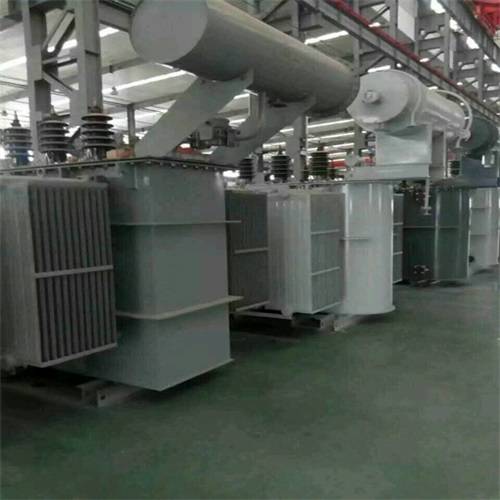

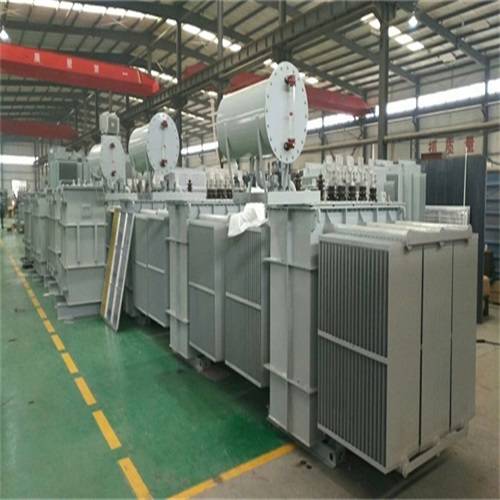

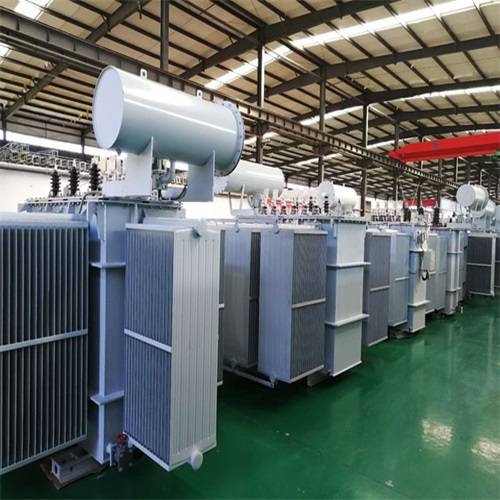

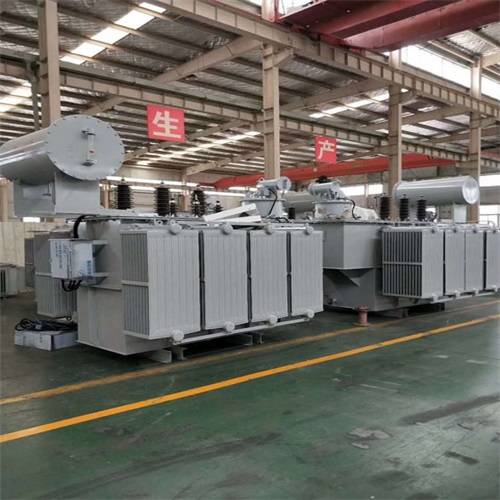

The S20-8000KVA oil-immersed transformer is a high-capacity transformer with a capacity of up to 8000kVA, which can meet the needs of large-scale power systems. It uses an oil-immersed cooling method to effectively transfer heat to the oil, thereby dissipating heat and reducing temperature. This cooling method makes the S20-8000KVA oil-immersed transformer have high electrical performance and mechanical strength, which can ensure the safe and reliable operation of the transformer.

Second, technical parameters

Rated capacity: 8000kVA

Rated voltage: 10kV on the high-voltage side and 400V on the low-voltage side

Rated current: 48.2A on the high-voltage side and 1316.4A on the low-voltage side

Connection group: Dyn11 and Yyn0

Cooling method: Oil-immersed cooling

Insulation Grade: Class H Insulation

Degree of protection: IP23

3. Advantage analysis

High performance: S20-8000KVA oil-immersed transformer adopts high-quality materials and advanced production technology, with high electrical performance and mechanical strength. It is made of H-class insulating material, which can maintain good electrical properties at high temperatures, which further improves the operational stability and safety of the transformer. At the same time, due to its oil-immersed cooling method, it has good heat dissipation performance and stability, which can ensure the long-term stable operation of the transformer.

High efficiency: S20-8000KVA oil-immersed transformer has high energy efficiency and low energy consumption, which can save a lot of energy costs for enterprises. Its energy efficiency rating is Class 1, which is about 5% higher than that of traditional oil-immersed transformers. This is due to the new core material and winding structure, which further reduces the energy loss of the transformer. At the same time, the transformer also adopts advanced heat dissipation technology, which can effectively reduce the operating temperature of the transformer, thereby improving its operating efficiency.

Safe and reliable: S20-8000KVA oil-immersed transformer has good moisture-proof and dust-proof performance, and can operate stably in harsh environments. At the same time, the oil-immersed cooling method can quickly transfer the heat of the transformer to the oil, so as to avoid dangerous situations such as fire or explosion caused by overheating. In addition, the transformer is also equipped with an intelligent control system and monitoring system, which can monitor the operating status and various parameters of the transformer in real time. In the event of an abnormality, the system will immediately issue an alarm and take corresponding measures to ensure the safe and reliable operation of the transformer.

Easy maintenance: S20-8000KVA oil-immersed transformer adopts low noise design, low noise during operation, and meets environmental protection requirements. At the same time, its simple structure and few parts also reduce the maintenance workload and cost. In terms of maintenance, due to its good heat dissipation performance and stability, it also reduces the frequency and difficulty of maintenance. In addition, the transformer is also equipped with an intelligent control system and monitoring system, which can monitor the operating status and various parameters of the transformer in real time. In the event of an abnormality, the system will immediately issue an alarm and take corresponding measures to ensure the safe and reliable operation of the transformer.

Long life: S20-8000KVA oil-immersed transformer adopts materials and production processes with strong weather resistance and long life, which can ensure the long-term stable operation of the transformer. At the same time, due to its oil-immersed cooling method, the heat of the transformer can be quickly transferred to the oil, so as to avoid dangerous situations such as fire or explosion caused by overheating, and further extend the service life of the transformer. In addition, the transformer is also equipped with an intelligent control system and monitoring system, which can monitor the operation status and parameters of the transformer in real time, and in case of abnormal conditions, the system will immediately send out an alarm and take corresponding measures to ensure the safe and reliable operation of the transformer, which further prolongs the service life of the transformer.

Fourth, summary

As a high-performance, high-efficiency, safe and reliable power equipment, S20-8000KVA oil-immersed transformer has a wide range of application prospects and market potential. Its high performance, high efficiency, safety and reliability, easy maintenance and long life make it an ideal choice for power users. In the future, with the continuous improvement of energy shortage and environmental protection requirements, S20-8000KVA oil-immersed transformer will be more and more widely used in power systems.
