Product description
Performance characteristics:

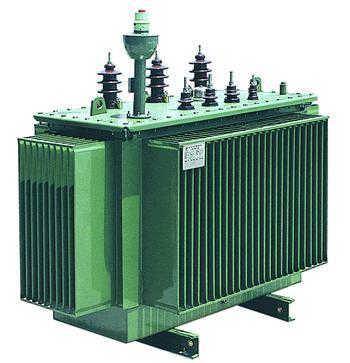

a. The low-voltage winding of S11-400kva all-copper oil-immersed transformer generally adopts a cylindrical structure of copper foil winding and pumping in addition to the copper wire for small capacity; The high-voltage winding adopts a multi-layer cylindrical structure, so that the ampere-turn distribution of the winding is balanced, the magnetic flux leakage is small, the mechanical strength is high, and the short-circuit resistance is strong. Sales Hotline: 13508930968
B. The core and winding have adopted fastening measures, and the fastening parts such as the height and low-voltage lead are equipped with self-locking locknuts, and the non-hanging structure is adopted, which can withstand the shock of transportation.
c. The coil and core are dried by vacuum, and the transformer oil adopts the process of vacuum oil filtration and oil injection, so that the moisture inside the transformer is minimized.
d. The oil tank adopts corrugated sheets, which has a breathing function to compensate for the volume change of oil caused by temperature changes, so the product does not have an oil conservator, which obviously reduces the height of the transformer.
e. Because the corrugated sheet replaces the oil conservator, the transformer oil is isolated from the outside world, which effectively prevents the entry of oxygen and water from leading to the decline of insulation performance.
f. According to the above five performances, it ensures that the S11-400kva all-copper oil-immersed transformer does not need to change oil during normal operation, which greatly reduces the maintenance cost of the transformer and prolongs the service life of the transformer.
Installation points
The S11-400kva all-copper oil-immersed transformer is an important component of the substation, and the S11-400kva all-copper oil-immersed transformer is generally installed in a separate transformer room.
Relying on oil as the cooling medium, such as oil immersion self-cooling, oil immersion air cooling, oil immersion water cooling and forced oil circulation. Generally, the main transformer of the booster station is oil-immersed, with a conversion ratio of 20KV/500KV, or 20KV/220KV, and the factory transformer used by the general power plant to drive its own load (such as coal mill, induced draft fan, blower, circulating water pump, etc.) is also an S11-400kva all-copper oil-immersed transformer, and its conversion ratio is 20KV/6KV.
The S11-400KVA all-copper oil-immersed transformer adopts a fully oil-filled sealed type. The corrugated oil tank shell adapts to the expansion of the oil with its own elasticity and is a permanently sealed oil tank, and the S11-400kva all-copper oil-immersed transformer has been widely used in various power distribution equipment.
Cooling method
In the operation of oil-immersed power transformers, the heat from the windings and iron core is first transferred to the oil, and then to the cooling medium through the oil. The cooling methods of oil-immersed power transformers can be divided into the following types according to the size of the capacity:
1. Natural oil circulation and natural cooling (oil immersion self-cooling type)
2. Natural oil circulation air cooling (oil immersion air cooling)
3. Forced oil circulating water cooling
4. Forced oil circulating air cooling
5. Conditions of normal use
6. The altitude does not exceed 1000m, indoor or outdoor
7. The maximum ambient temperature is +40°C, and the maximum daily average temperature is +30°C
8. The highest annual average temperature is +20°C and the lowest temperature is -25°C
9. According to the user’s requirements, the transformer can be provided to operate under special use conditions
Xuzhou Runsheng Electric Power Equipment Co., Ltd. is Runsheng S11-30/10S11-400kva is a direct manufacturer of all-copper oil-immersed transformers, and the quality, price and after-sales service of the products supplied have absolute advantages! Buying here allows you to bypass the middleman and directly reduce the purchase cost The most important thing is that the after-sales service of the product is guaranteed by authority! (Sign a quality contract in accordance with the policy, implement “three guarantees a year”, lifelong maintenance!)
1. Runsheng brand S11-400kva all-copper oil-immersed transformer is produced in full accordance with national and industry standards, and meets all the requirements put forward by users Processing technology, in strict accordance with the ISO9000 standards for production process control, in line with the attitude of being responsible for users, to provide perfect processing technology, advanced technology, complete testing means, high standards, high quality products.
2. Our company strictly implements the product outbound inspection and testing system to ensure that the product pass rate reaches 99.99%.
3. The product quality assurance period is one year from the date of preliminary inspection and acceptance of the product.
The product quality assurance period implements the “three guarantees”, and the service is timely and thoughtful, so that users are satisfied.
4. Provide thoughtful and timely technical services according to user requirements, and assist and guide users to install and debug.
5. Our company adheres to the principle of “quality first, customer first”, so that customers are God and quality is life.
Xuzhou Runsheng Power Equipment Co., Ltd., located in Xuzhou, Jiangsu Province, is an integrated comprehensive power production enterprise specializing in the production, operation and sales of S11-400kva all-copper oil-immersed transformers. The company’s subordinate enterprises have advanced transformer production equipment and first-class testing hands It brings together a group of high-quality service teams integrating transformer R&D, production and marketing, and has a number of technical patents in the electromechanical and electrical fields, and is based on the forefront of transformer development with strong strength. Sales Hotline: 13508930968
The main products of Xuzhou Runsheng Electric Power are: S9, S11, S13, S15 series 10KV ~ 110KV oil-immersed power transformers, on-load voltage regulating power transformers, amorphous alloy transformers, SC (B) 9 (10), SG (B) 10 dry-type transformers, switchgear and combined transformers, box-type substations and special power transformers such as anti-theft, mining, rectifier, electric furnace, etc. The products are widely used in power transmission and distribution systems in electric power, nuclear power plants, transportation, mining, metallurgy, construction, petrochemical, chemical, electrified railways, subways, urban light rail, military defense, communications, urban and rural power grid construction and transformation, etc., and the products are sold all over the country.
