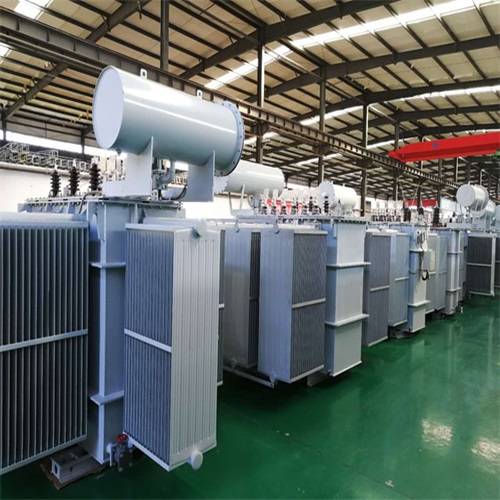

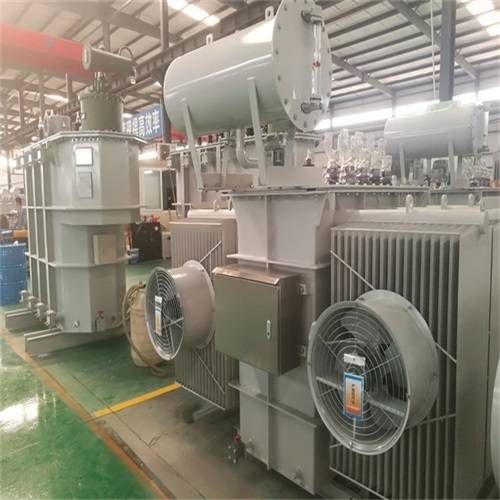

Introduction of 10000KVA oil-immersed power transformer

1. Product Overview

10000KVA oil-immersed power transformer is one of the indispensable key equipment in the power system, which is mainly used to convert high-voltage electrical energy into low-voltage electrical energy to meet the needs of various electrical equipment. It has the characteristics of high efficiency, stability and reliability, and has been widely used in many fields such as electric power industry, commercial streets, industrial and mining enterprises, rural power and lighting.

Second, technical characteristics

High efficiency and energy saving: 10000KVA oil-immersed power transformer adopts advanced design and manufacturing technology, with low no-load loss and load loss, so that it can achieve high efficiency and energy saving during operation. At the same time, its high energy efficiency level and environmental performance also meet the requirements of modern power industry for equipment performance.

Compact structure: The transformer adopts a compact structural design, which makes it have a small footprint and is easy to install and maintain. At the same time, the oil tank adopts a corrugated design, which can effectively compensate for the change in oil volume caused by temperature and load changes, and ensure the stable operation of the transformer.

High reliability: The 10000KVA oil-immersed power transformer adopts an all-copper structure, which has good conductivity and heat dissipation performance, which can effectively reduce current loss and temperature rise, and improve the service life of the transformer. In addition, it also uses high-quality silicon steel sheet and insulating materials, which have good corrosion resistance, insulation performance and heat resistance, which can ensure the safe and reliable operation of the transformer.

Strong short-circuit resistance: The transformer adopts advanced winding process technology and electromagnetic compatibility design, which makes it have stronger short-circuit resistance and electromagnetic compatibility. In the case of sudden short circuit, it can quickly cut off the fault current and protect the safety of equipment and systems.

3. Product advantages

High efficiency and energy saving: Compared with traditional transformers, 10000KVA oil-immersed power transformers have lower losses and higher efficiency. Its no-load loss is 30% lower than that of S9, and the energy-saving effect is more obvious.

Stable and reliable: The transformer uses high-quality materials and advanced manufacturing technology to ensure its stable and reliable performance. At the same time, it also has perfect protection measures to maintain normal operation in various harsh environments.

Environmental protection and energy saving: The transformer adopts environmentally friendly materials and manufacturing processes, and meets the national environmental protection requirements. At the same time, its high-efficiency and energy-saving characteristics also meet the requirements of the modern power industry for green, low-carbon and environmental protection.

Fourth, the field of application

10000KVA oil-immersed power transformer is suitable for various power systems, such as power plants, substations, industrial and mining enterprises, commercial streets, rural power and lighting, etc. Its efficient, stable and reliable performance characteristics make it one of the indispensable and important equipment in the power system.

V. Conclusions

To sum up, the 10000KVA oil-immersed power transformer is an efficient, stable and reliable power equipment with a wide range of application prospects. Its high efficiency and energy saving, compact structure, high reliability, and strong short-circuit resistance make it play an important role in the power system. With the continuous development of the power industry and the continuous growth of power demand, the 10000KVA oil-immersed power transformer will continue to play its important role to provide stable and reliable power support for modern industrial and urban power consumption.
